H-SERIES

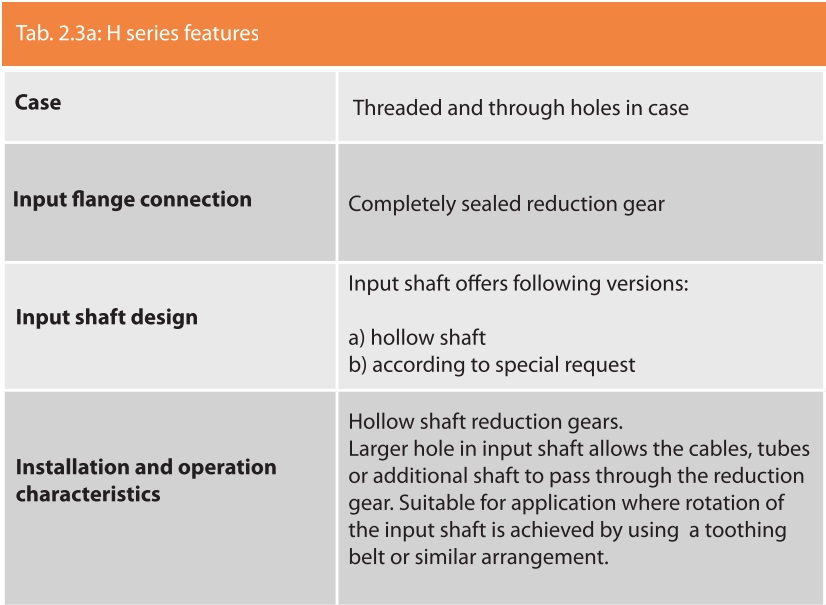

H series represents high precision reduction gears TwinSpin with through holes in the shafts, also known as hollow-shaft version. Cables, tubes with compressed air, drive shafts etc. can be led via the through holes in the shaft of the gear. H series is completely sealed and are filled with grease for its lifetime. H series high precision reduction gears consist of an accurate reduction mechanism and high-capacity radial and axial cylindrical bearings. This design of reduction gears allows the mounting of the load directly to the output flange or case without requiring additional bearings.


H系列為中空的高精度減速機TwinSpin,也稱為空心軸版本。 電纜,氣管,驅動軸等可以通過減速機上的中空孔。 H系列完全密封,並在其機構內充滿潤滑脂。 H系列高精度減速機由精準的減速機構和大量徑向和軸向圓柱軸承組成。 減速機的這種設計允許將負載直接安裝到輸出法蘭或減速機本體上,而不需要額外的軸承。

  • zero-backlash reduction gears
  • high-moment capacity
  • excellent positioning accuracy and positioning repeatibility
  • high torsional and tilting stiffness
  • small dimensions and weight
  • high reduction ratios
  • high effeciency
  • long lifetime
  • easy assembly
  • large input shaft hole diameter
  • 零背隙減速機
  • 高轉矩能力
  • 優異的定位精度和重複定位精度
  • 高扭力和高傾斜力矩
  • 體積小,重量輕
  • 高減速比
  • 高效率
  • 壽命長
  • 簡易組裝
  • 大中空孔
